CNC Indexing Table With Built-in Pallet Receiver, Hydraulic Clamping With Hirth Gear

CNC-Indexing-Table-with-built-in-Pallet-Receiver

Inquire Add to Basket
  • Model No: HC-1250HP
  • Factory Location: Taiwan
  • Sample Request: No
  • Target Markets: Worldwide

Detail Information

Description :

A heavy load capacity table designed for using on horizontal milling & boring machines. Table indexing via a servo motor for flexibility and rapid positioning. Indexing table is hydraulic clamping with Hirth coupling for accuracy and rigidity.

Specification :

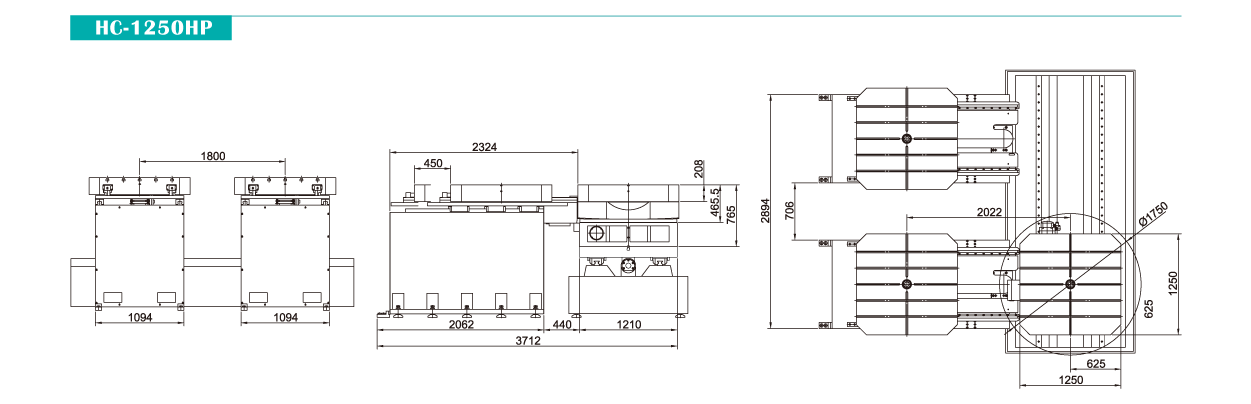

ModelHC-1250HP
Pallet dimension (mm)1250 x 1250

Diameter of "Pilot" bore (mm)

Ø55H7
Max. working diameter (mm)Ø1750

Overall height of table (mm)

765
Pallet transporter height (mm)Depends on height of B axis
Pallet transporter length (mm)2062
Width of T slots (mm)22H7
Lifting stroke during pallet transfer (mm)0.2~0.3
Operation pressure (bar)35
Ambient temperature  (o C)18o ~40o
Gear ratio1/360
Hydraulic pressure (kg/cm2)35
Table Net weight (kg)7500
Transporter Net weight (kg)6500
